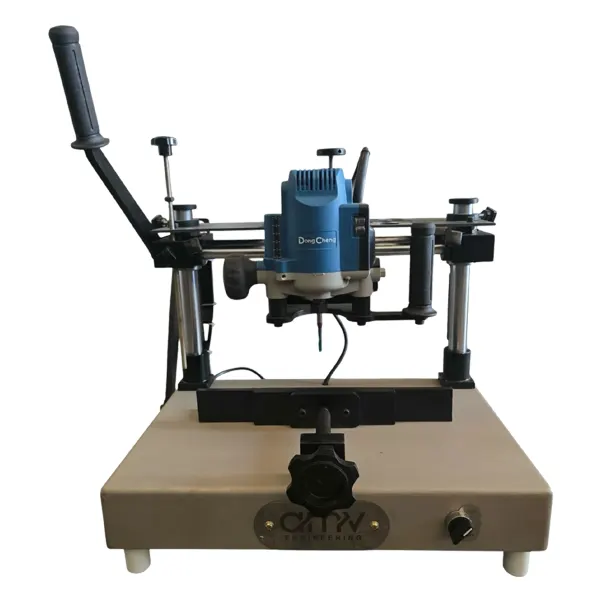

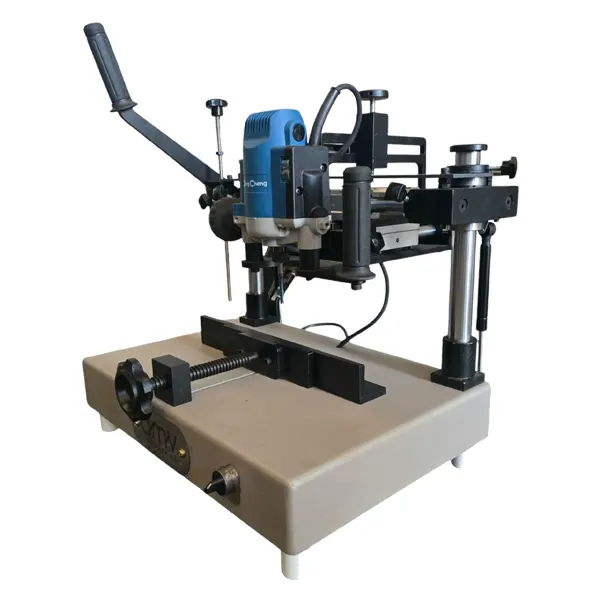

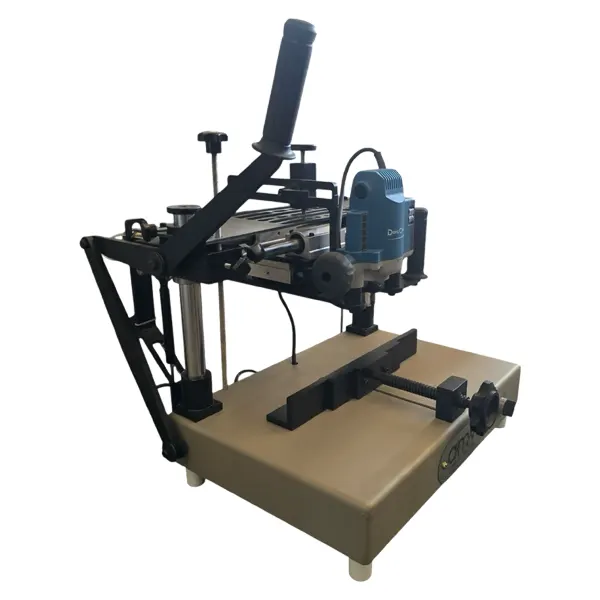

Manual copy router machine, Semi Automatic Single Head Aluminum Copy router Machine Designed for UPVC and aluminum profiles slotting.
Aluminium / UPVC Copy Router Machine
Machine Features :
- Complete heavy duty MS metal body Structure.
- Carbide router bit included with machine which gives smooth & perfect sloat.
- Heavy router motor insures powerful performance every time (which replace with Bosch or Dongchang brand as per requirement)
- AMV CR01 gives highest height & width in routing performance.
- Operate with road – bush (XYZ axis), which give smooth movements without low noise & vibration at time of working condition.
- For less power cosuption; machine is mounting with a sensor wich only provide power at working time.
- Template plate makes from hard MS material which gives accurate slot cutting for long time.
- Template plate has more than 20 slots (it is modify as per requirement).
Technical Specifications:
| Sr. No. | Description | Value |
|---|---|---|
| 1 | Model Number | AMV CR01 |
| 2 | Motor Power | 900 watt(Dongchang), 1300 watt(Bosch) |
| 3 | Router Bit | 8 mm |
| 4 | Frequency | 50 – 60 Hz |
| 5 | Voltage | 230 V |
| 6 | Weight | 45 Kgs(Approx) |
| 7 | Machine Hight | 550 mm |
| 8 | Machine Length | 500 mm |
| 9 | Machine Width | 550 mm |
| 10 | Machining Capacity | X – 250 mm, Y – 55 mm, Z – 90 mm |
| 11 | Clamping Capacity | 120 mm |
| 12 | No Load Speed | 26,000 RPM(Dongchang), 28,000 RPM(Bosch) |
| 13 | Cutting Capacity | 2 – 2.5 mm(Dongchang), 3-4 mm(Bosch) |
| 14 | Country of Origin | India |
