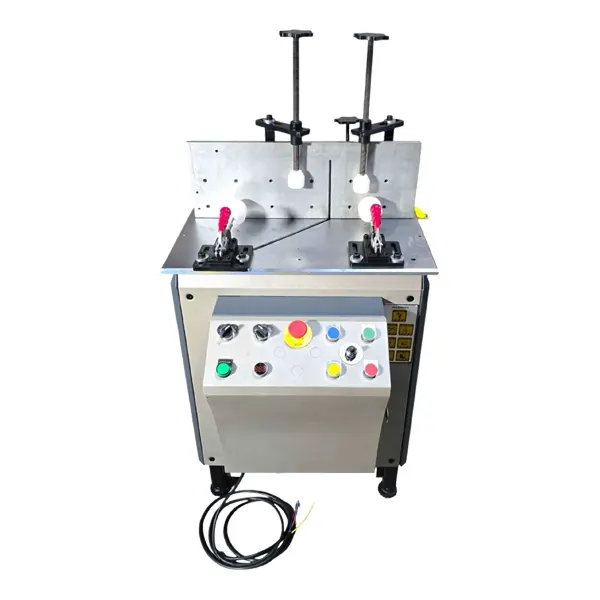

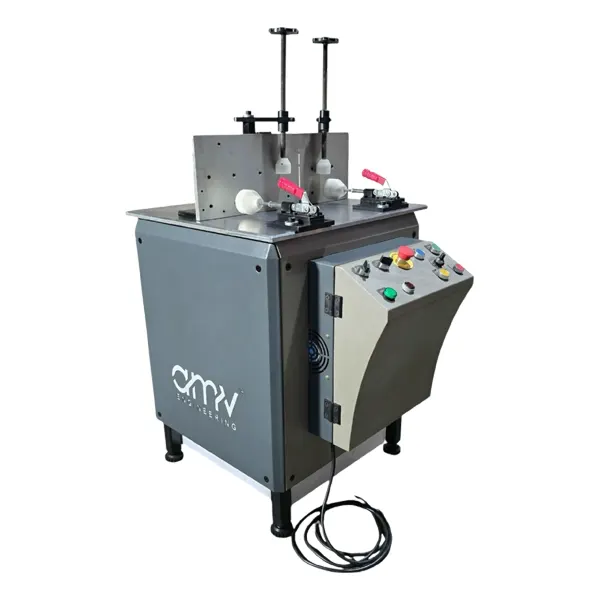

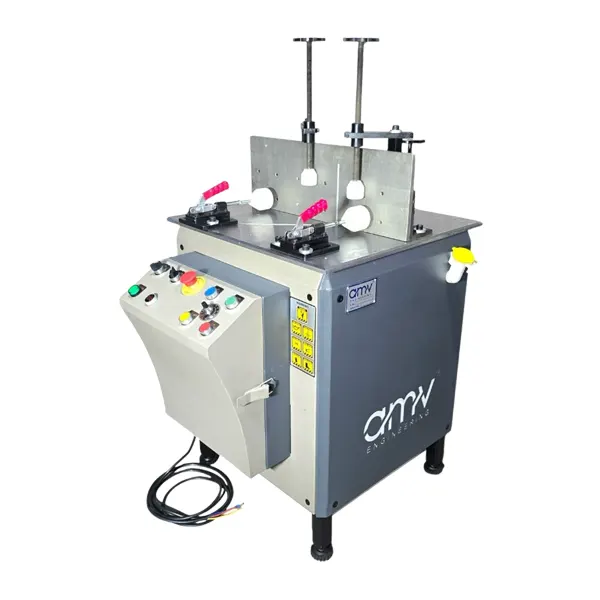

Automatic Single Head Aluminum Profile Cutting Machine Designed for UPVC and aluminum profiles cutting.
Aluminium / UPVC Cutting Machine
Machine Features :
- Cutting range 45° Or 90°.
- 400 mm Carbide Freud brand italian saw blade supplied with machine to insure quality cutting.
- Diameter of a diamond saw blade is 400 mm (Which can Replace with 300 mm, 350mm As Per Requirement).
- Machine provides vibrationless operation wich gives precision cutting angle.
- For security purpose; In the case of Over Voltage Machine is treap Automatically.
- Adjustable cutting speed.
- For Up and down operation of blade; Standerd Equiped with Road – Bush & Helical Rack-Pinion System.
- 16 mm Base plate makes with Grinding and hard chrome process.
- Control card base Automation system.
- Automatic Inbuilt Diesel Spray wich Increase life of saw blade,gives smoodh & mirror finish cutting.
- Indicator light for availibility of Diesel.
- Saw blade cover system protect blade & collect waste aluminium particles in the tray.
- Comply with branded FLT bearing with machine.
- This is ideal machine to cut uneven & odd shaped profile due to 4 manual clamp position setting.
- Machine is equipped with the 2 Horizontal & 2 Verticle manual clamp for Optimum grip.
- Machine deliver with Tool kit.
- In optional extra accesories, roller stand, roller track with measuring tap fitting, DRO length gauge & saftey cover.
Technicial Specifications:
| Sr. No. | Description | Value |
|---|---|---|
| 1 | Model Number | AMVASC03 |
| 2 | Power Supply | 220 V, 1 ph, 50-60 Hz |
| 3 | Spindle Speed | 4200 rpm |
| 4 | Total Kw | 1.5 kW |

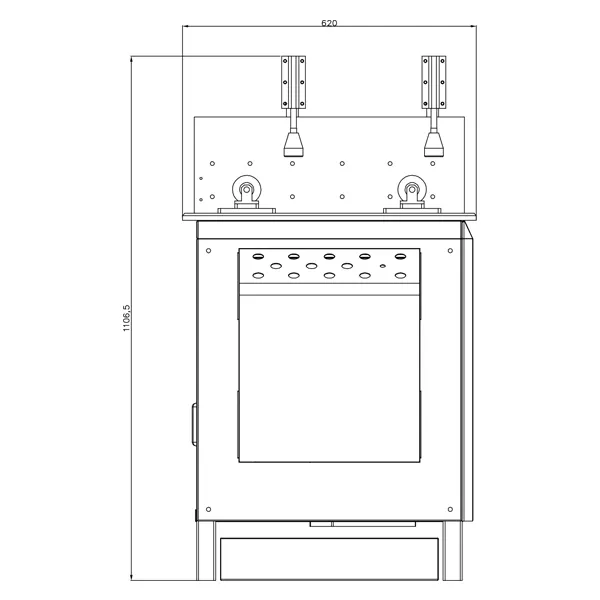

| 5 | Machine Height | 1000 mm |

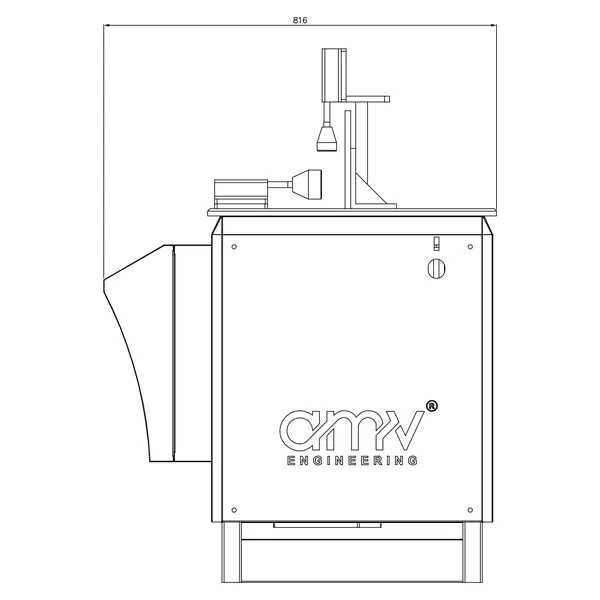

| 6 | Machine Depth | 800 mm |
| 7 | Machine Width | 620 mm |
| 8 | Machine Weight | 180 Kg (Approx) |
| 9 | Saw Outside Diameter | Ø400 |
| 10 | Inside Diameter of Saw | Ø30 |
| 11 | Saw Thickness | 3.5 mm |
| 12 | Number of Teeth | 120 |
| 13 | Production capacity | 500 Pcs. Per Day(Approx) |
| 14 | Warranty | 6 Months |
| 15 | Country Of Origin | India |
